Hem / Produkt / Fördraget / Flexrör 16/F/UTP6A iCable B300

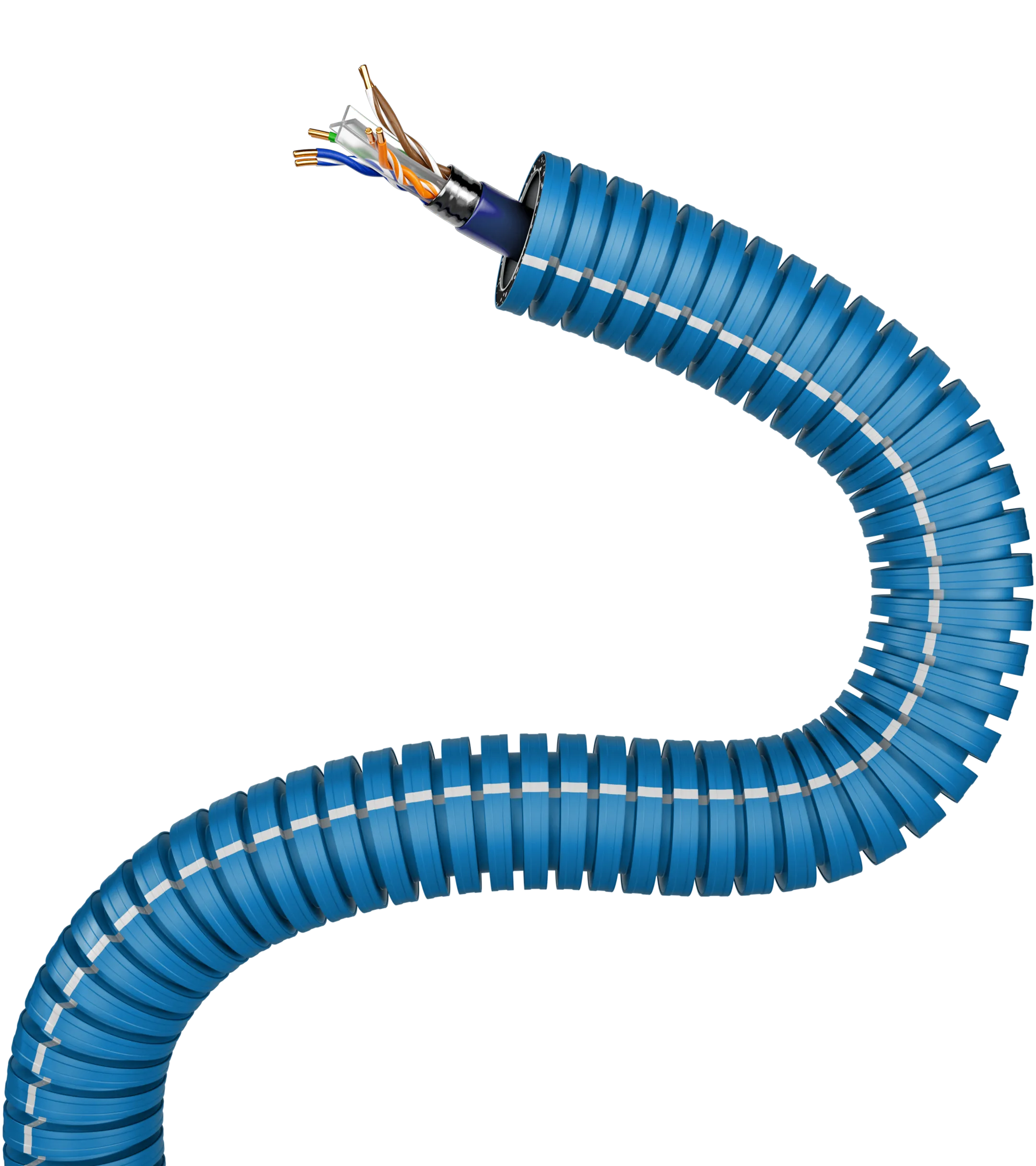

Flexible conduit 16/F/UTP6A iCable rPP B300

Environmentally friendly (F/UTP6A) 16 mm halogen-free blue corrugated installation pipe made of recycled polypropylene in a nano-friction design, developed based on the requirements and wishes of Swedish installers.


S-UTP6A-CC

Description

The product is delivered in 300-meter reels with environmentally friendly plastic film. The product has been developed over many years with the aim of minimizing environmental impact and maximizing functionality. The product is designed in three layers to achieve maximum benefit (outer color layer, durable middle layer, and inner friction-free layer).

The conduit is approved according to EN 61386-1 and -22, classified as ICTA 3422/3342, which means, among other things, that it has a compressive strength exceeding 750 N and is therefore approved for embedding in concrete. The conduit is also approved for indoor installation at temperatures between -25°C and +90°C. The product is user-friendly, halogen-free, meter-marked, environmentally friendly, and made of recycled polypropylene, and produces minimal smoke in the event of fire.

FUTP6A iCable B300 – 1417758

Technical Information

Item number:

14 177 58

Designation:

Flexible conduit 16/F/UTP6A iCable rPP B300

m/pack:

300

m/pallet:

2 400

Material:

Recycled polypropylene (rPP)

Classification:

ICTA 3422/3342

UV resistant:

No

Net weight:

11,1 kg

Diameter:

 Ã˜ Outer 16mm / Ø Inner 11,2mm

Stiffness class:

750 N

Packaging type:

Coil

CPR class:

Dca - s2,d2,a2

Temperature range:

-25 to +90 C

Standard

EN 61386-1 and 22

Color:

Blue

Ecolabel:

The product is listed in Husproduktportalen
