Flexible conduit 25/RQ 5G6 iCable rPP R50

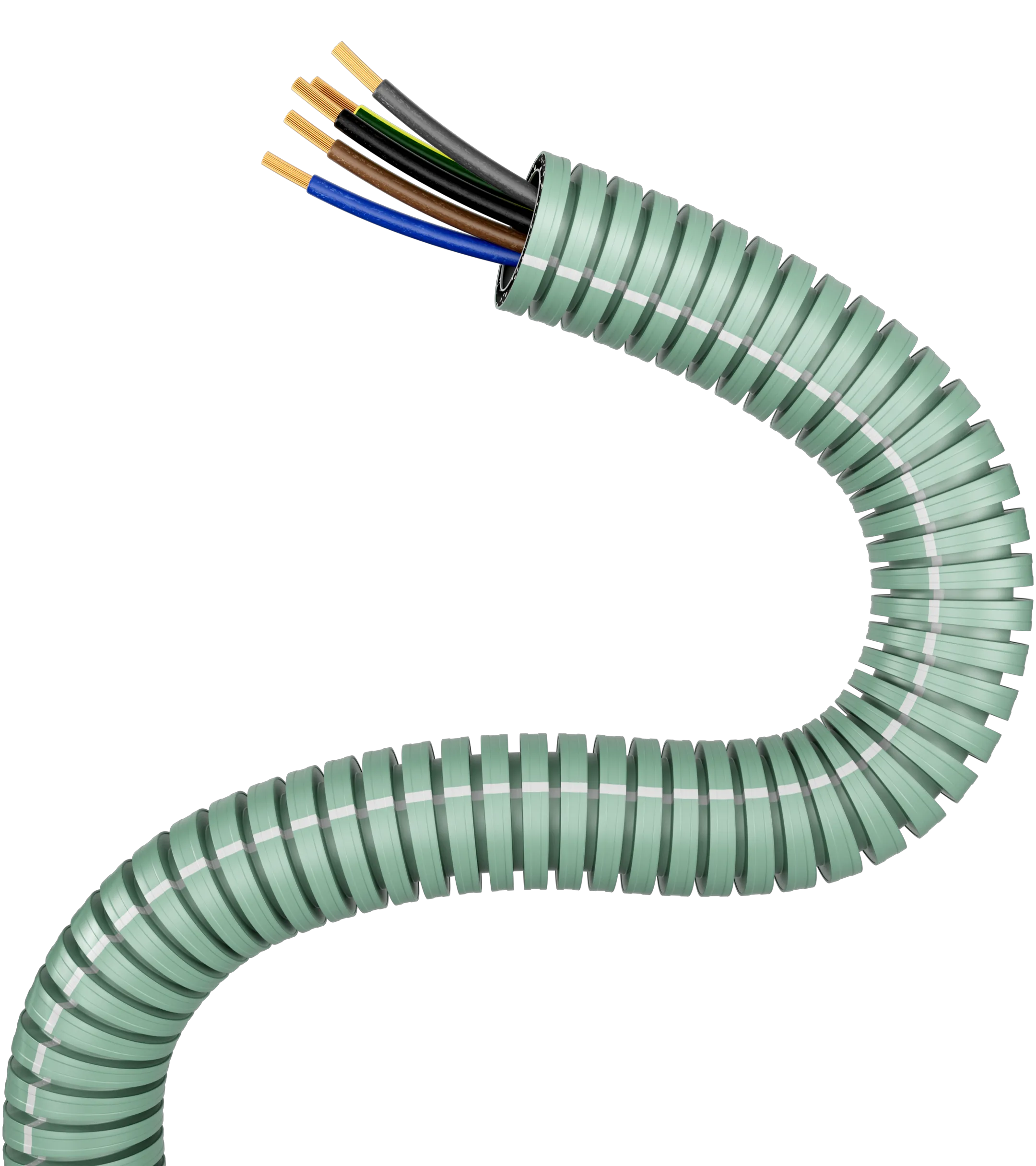

Environmentally friendly (RQ 5G6) 25 mm halogen-free ipipe greent corrugated installation pipe made from recycled polypropylene in a nano-friction design, developed based on the requirements and wishes of Swedish installers.

This item will be available in Q3/25.

S-RQ5G6

Description

The product is delivered in 50-meter rolls with environmentally friendly plastic film. The product has been developed over many years with the aim of minimizing environmental impact and maximizing functionality. The product is designed in three layers to achieve maximum benefit (outer color layer, durable middle layer, and an inner friction-free layer).

The conduit is approved according to EN 61386-1 and -22, classified as ICTA 3422/3342, which means, among other things, that it has a compressive strength exceeding 750 N and is therefore approved for embedding in concrete. The conduit is also approved for indoor installation at temperatures between -25 C and +90 C. The product is user-friendly, halogen-free, meter-marked, environmentally friendly and made of recycled polypropylene, and produces minimal smoke in the event of fire.

Flexror-25RQ-5G6-Max-R50-1417707-1

Technical Information

Item number:

14 177 07

Designation:

Flexible conduit 25/RQ 5G6 iCable rPP R50

m/pack:

50

m/pallet:

900

Material:

Recycled polypropylene (rPP)

Classification:

ICTA 3422/3342

UV resistant:

No

Net weight:

22,5 kg

Diameter:

 Ø Outer 25mm / Ø Inner 17,8mm

Stiffness class:

750 N

Packaging type:

Coil

CPR class:

Dca - s2,d2,a2

Temperature range:

-25 to +90 C

Standard

EN 61386-1 and 22

Color:

ipipe green

Ecolabel:

The product is listed in Husproduktportalen

Downloadable documents
