Home / Flexible Conduit / Flexible Conduit 32mm iFlow Pro UV rPP R25

Flexible conduit 32mm iFlow Pro UV rPP R25

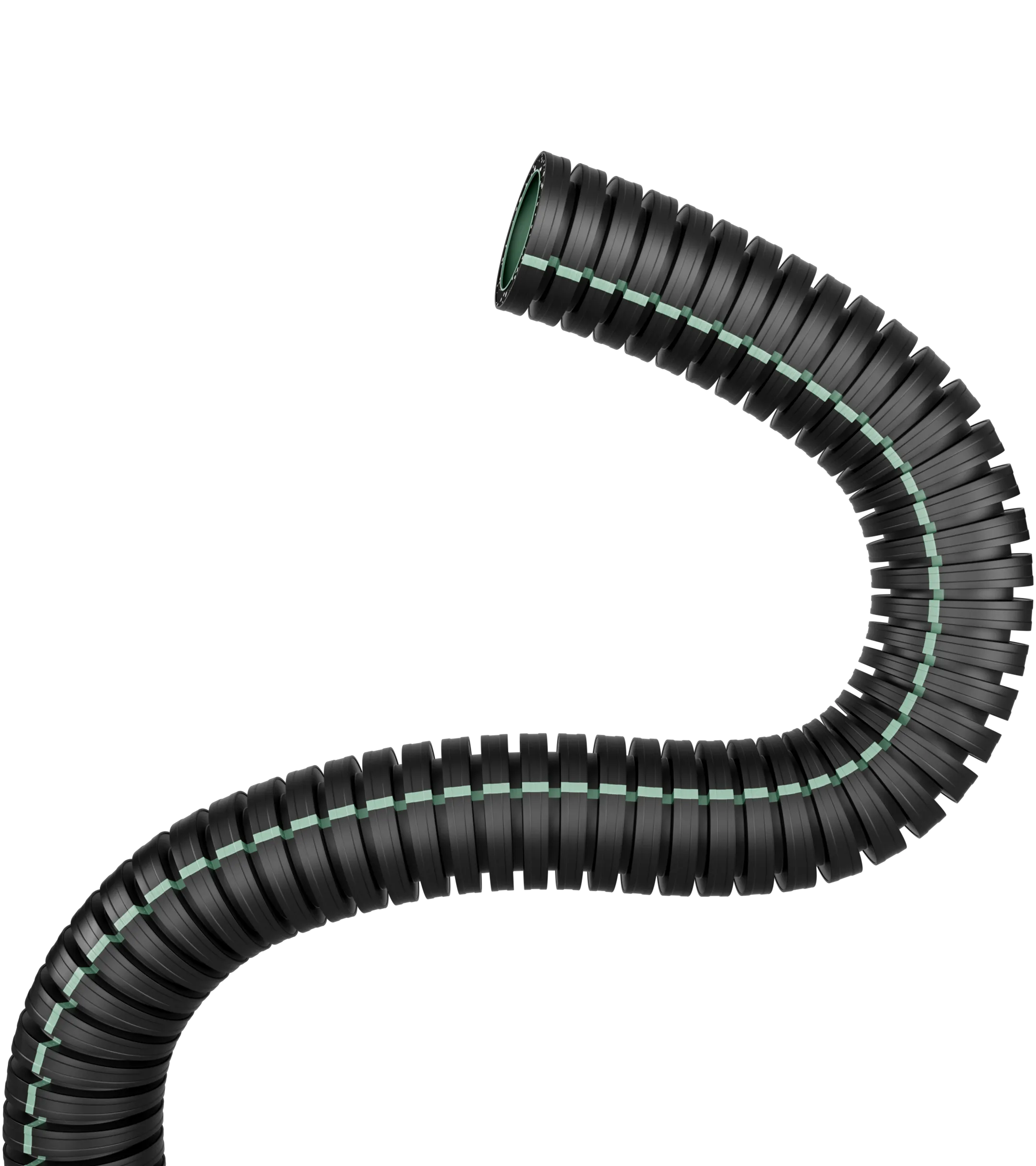

Environmentally friendly 32 mm halogen-free black corrugated UV-resistant installation pipe made of recycled polypropylene in a nano-friction design, developed based on the requirements and wishes of Swedish installers. The flexible pipe is supplied in 25-meter coils with environmentally friendly plastic film.


S-UV

Description

The product has been developed over many years with the goal of minimal environmental impact and maximum functionality. It is designed in three layers to achieve maximum benefit (outer color layer, durable middle layer and an inner low-friction layer). The conduit is approved according to EN 61386-1 and -22, classified as ICTA 3422/3342, which means, among other things, that it has a compressive strength exceeding 750 N and is therefore approved for embedding in concrete.

The conduit is also approved for indoor installation at temperatures between -25 C and +90 C, and is also suitable for outdoor installations where UV protection is required, such as solar panels. The product is user-friendly, halogen-free, meter-marked, UV resistant, environmentally friendly and made of recycled polypropylene, and produces minimal smoke in the event of fire.

Flexror-32mm-iFlow-UV-R25-1413733-1

Technical Information

Item number:

14 137 33

Designation:

Flexible conduit 32mm iFlow Pro UV rPP R25

m/pack:

25

m/pallet:

700

Material:

Recycled polypropylene (rPP)

Classification:

ICTA 3422/3342

UV resistant:

Ja

Net weight:

3,1 kg

Diameter:

 Ø Outer 32mm / Ø Inner 24mm

Stiffness class:

750 N

Packaging type:

Coil

CPR class:

-

Temperature range:

-25 to +90 C

Standard

EN 61386-1 and 22

Color:

Black

Ecolabel:

Listed in building product portal (gen. 3 & 4)

Downloadable documents
