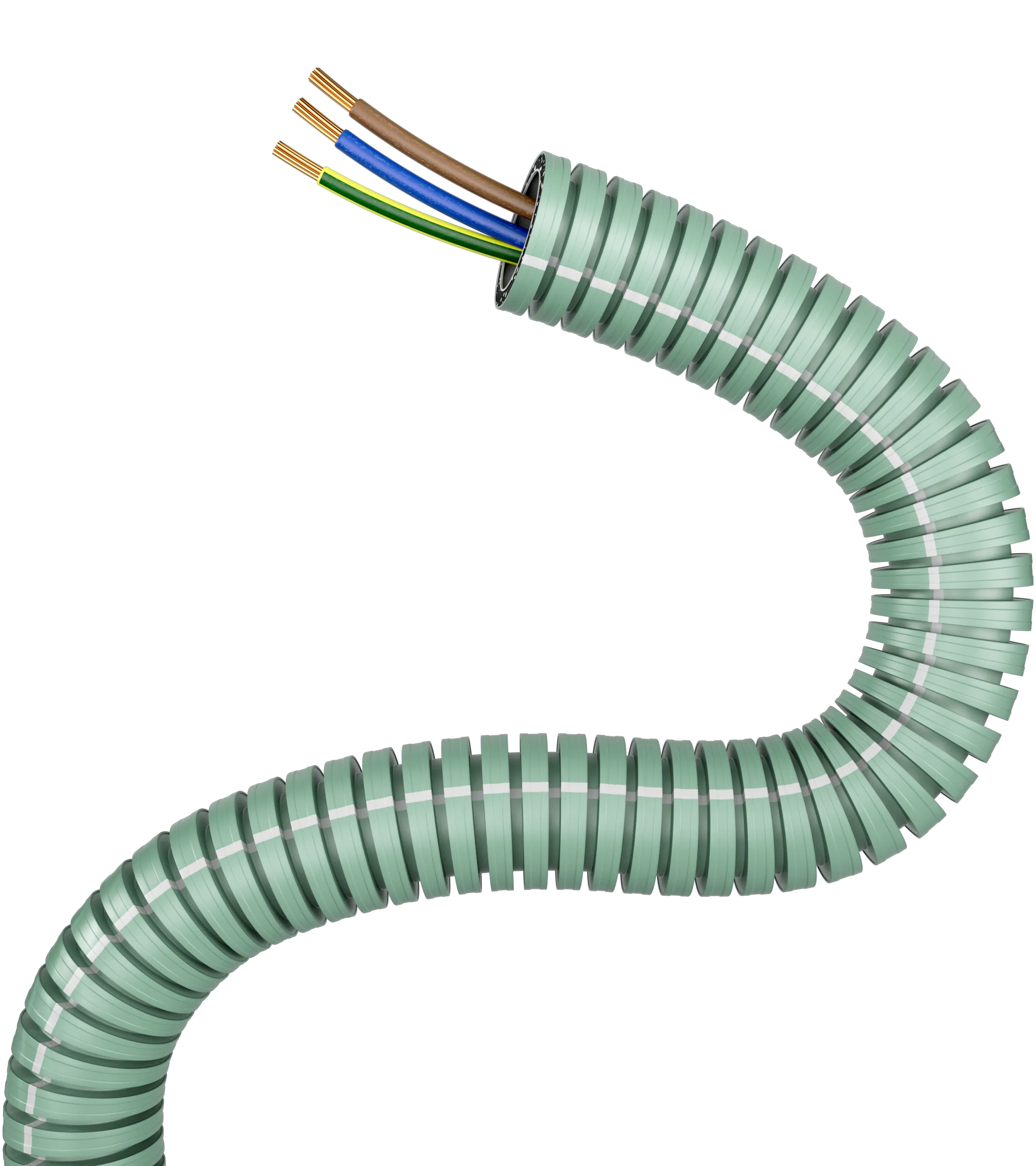

Flexible conduit 16/FK 3G1,5 iCable rPP R100
Environmentally friendly (FK 3G1.5) 16 mm halogen-free ipipe green corrugated installation pipe made of recycled polypropylene in a nano-friction design, developed based on the requirements and wishes of Swedish installers.
Description
The product is delivered on a 100-meter roll with environmentally friendly plastic film. It has been developed over many years with the goal of minimal environmental impact and maximum functionality. The product is designed in three layers to achieve maximum benefit (outer color layer, durable middle layer and an inner low-friction layer).
The conduit is approved according to EN 61386-1 and -22, classified as ICTA 3422/3342, which means, among other things, that it has a compressive strength exceeding 750 N and is therefore approved for embedding in concrete. The conduit is also approved for indoor installation at temperatures between -25 C and +90 C. The product is user-friendly, halogen-free, meter-marked, environmentally friendly and made of recycled polypropylene, and produces minimal smoke in the event of fire.
Technical Information
Item number:
14 177 40
Designation:
Flexible conduit 16/FK 3G1,5 iCable rPP R100
m/pack:
100
m/pallet:
1 800
Material:
Recycled polypropylene (rPP)
Classification:
ICTA 3422/3342
UV resistant:
No
Net weight:
11,2 kg
Diameter:
Ø Outer 16mm / Ø Inner 11,2mm
Stiffness class:
750 N
Packaging type:
Coil
CPR class:
Dca - s2,d2,a2
Temperature range:
-25 to +90 C
Standard
EN 61386-1 and 22
Color:
ipipe green
Ecolabel:
The product is listed in Husproduktportalen
